Scan to Email

Last Updated: April 07, 2026

This topic covers how to turn on and configure Scan to Email.

Key Points

Review the following key points:

  • Scan to Email has a file size limit of 30MB.
  • If you would like to use your own SMTP server, refer to Bring Your Own SMTP.
  • Due to operating system (OS) limits, TIFF file attachments might not open natively on Android mobile devices.
  • Received emails show no-reply@vasion.com as the sender.

Requirements

Review the Requirements before configuring this feature. Also review the following:

  • Ensure that you add the applicable regional URLs to your inbound email allow list so that emails reach the users. For more details refer to Mail Flow Rules.

Process Overview

You perform these high-level procedures:

  1. Turn On Scanning.

  2. Configure Email Settings.

  3. Install Scan to Email.

1. Turn On Scanning

Do the following to turn on scanning:

  1. In the Admin Console, go to Tools then Settings then Scanning.
  2. Expand the Scan Settings section.
  3. Select Enable Scanning with Printer Default Settings.

Configure Scan Settings

The settings you define in the Scan Settings section apply globally to all printers. You can set printer-specific settings in the printer object's Apps tab. Do the following:

  1. Use the fields in the Global Scan Settings section to configure the default scan settings.
  2. (Optional) Select the User can adjust this setting option to allow the end user to adjust the setting at the Control Panel Application (CPA).
  3. Select Save in the upper-right corner.

Admin Console showing Global Scan Settings.

Each setting is categorized as an input or output value, delineating how you position documents on the scanner, input, versus how they appear after scanning, output. To configure the settings correctly, understand the categories and how the values apply.

Options for Scan Settings

Input Values

Output Values
  • Duplex
    • 1-sided
    • 2-sided-book
    • 2-sided-flip-up
  • Paper Size
    • Auto (available on only Konica Minolta and Xerox devices)
    • Letter
    • A4
    • A3
  • Orientation
    • Portrait

    • Landscape

      Short-edge-first orientation is required by default.

  • File Type
    • PDF
    • JPEG
    • TIFF
  • Color Mode
    • Black & White
    • Greyscale
    • Color
    • Auto
  • DPI
    • 100
    • 200
    • 300
    • 600

(Optional) Turn On Mobile Scan

The following steps explain how to turn on the Mobile Scan feature for the Vasion Print app. Continue to the next section if you are not using this feature.

Do the following to turn on Mobile Scan for end users:

  1. Expand the Mobile Scan Settings section.
  2. Select Enable Mobile App Scanning.
  3. (Optional) Select Allow native phone scan functions. This setting lets the end user send scanned jobs with apps, like email and SMS.

The Scan option appears in the mobile app shortly after you turn on the setting.

Admin Console showing Mobile Scan Settings section.

For more information on using the Mobile Scan feature, refer to Mobile Scan.

2. Configure Email Settings

Follow these steps:

  1. Select Preset Scan Locations.
  2. Select the Email tab.
  3. Select Enable Scan to Email.
  4. (Optional) Configure the following:

    1. User can adjust email address: End users can manually enter the email address destination. When this option is off, the scan goes to the end user who is logged in to the CPA.

      This option is required for iOS devices to use this functionality. With this option turned on, end users can send to emails that are out of your network.

    2. Enable Address Book: End users can access the address book and select an email from the list, sourced from the email field in your identity provider (IdP). You can leave the previous option off to ensure that end users can send scans only within your network.
    3. Default File Name: You can set a default file name for the email attachment and the email subject line. Select one or more options from the dropdown menu, manually enter values, or leave it blank.
  5. Select Save in the upper-right corner.

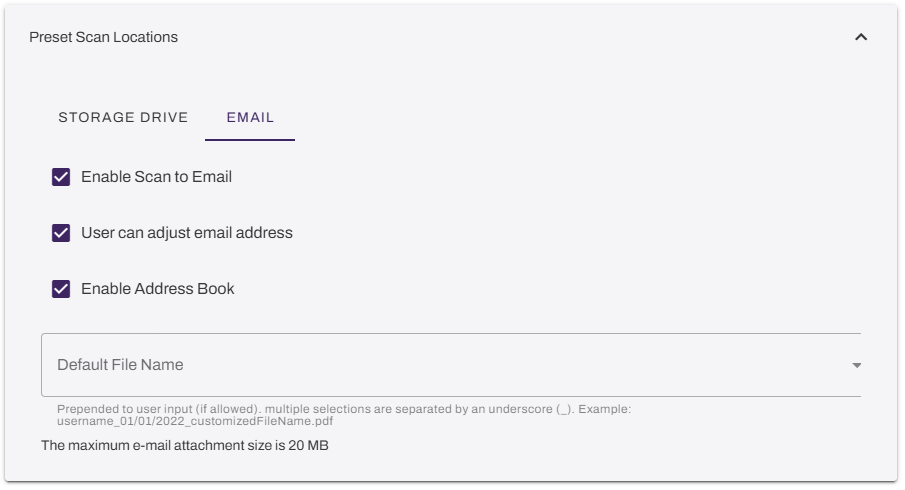

Admin Console showing Preset Scan Locations section and Email tab.

Changes to these settings appear on Android devices after the user reopens the Vasion Print Print app. However changes might not appear on iOS devices for up to 4 hours.

3. Install Scan to Email

These steps are for installing this feature on a single printer. To install on multiple printers simultaneously, refer to CPA Manager.

Follow these steps:

  1. In the Admin Console, go the printer on which you want to install Scan to Email.
  2. Select the Apps tab.
  3. Ensure that the correct manufacturer, CPA version, and Service Client are selected.

  4. In the Install Embedded Application section, select the Scan to Email option.

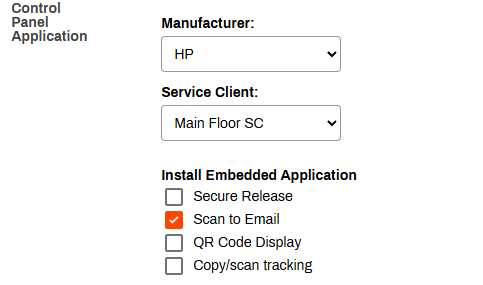

    Admin Console showing printer object's Apps tab and Install Embedded Application section.

  5. In the Scan Settings section, select from the following:
    1. Use global scan settings: This option is the default. You configure these settings in the Global Scan Settings.
    2. Use printer specific scan settings: This makes the dropdown menus available so that you can adjust the printer-specific settings as needed.
  6. Select Save in the upper-right corner.

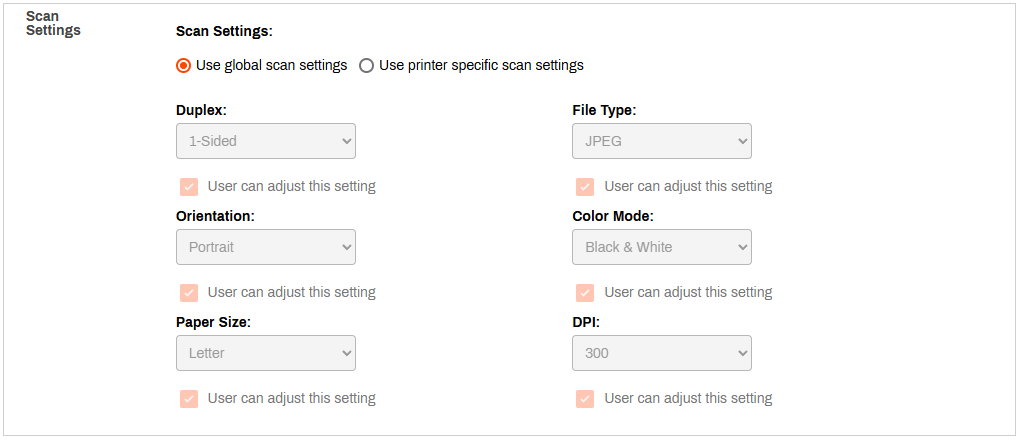

Admin Console showing printer object's Apps tab and Scan Settings section.
