Off-Network Printing

Last Updated: August 12, 2026

The Off-Network Cloud Print (ONCP) and Off-Network Print (ONP) features solve two printing challenges:

• Managing print in a Zero Trust Architecture (ZTA).
• Providing simple and secure access to users without a virtual private network (VPN) or web portal.

Organizations can create an isolated, secure printer network that is separate from the main network used by employees, contractors, or guests. This separation adds an extra layer of security and keeps the printers in a controlled network environment. ONCP and ONP bridge the gap between networks, allowing users on the main network to print without compromising the security of the printer network.

Key Points

Review the following key points:

• These features require additional licensing. Contact your Vasion representative for details.
• These features exclusively use RAW printing on the Windows platform. ONP also uses RAW printing on macOS platforms.
  • Line Printer Remote (LPR) is not currently supported.

ONCP

• Supports Windows, macOS, and mobile devices (iOS and Android).
• Provides two internal routing options: install the ONCP app on the printer, or use an Internal Routing Service (IRS)Agent for manufacturers that do not support the app.

ONP

• Supports Windows, macOS, Linux, ChromeOS, and mobile devices (iOS and Android).
• Supports customer-hosted and hybrid gateway configurations for additional redundancy.
• You can use your own asymmetric key pair for additional print-job encryption. For more details refer to Asymmetric Key Pair Configuration.

How Off-Network Printing Works

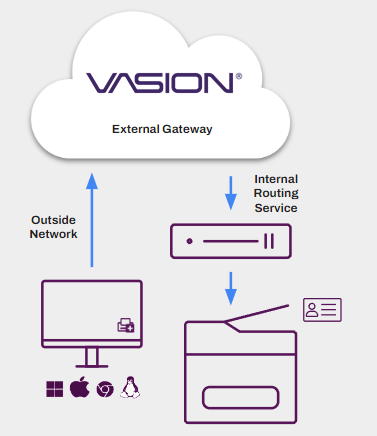

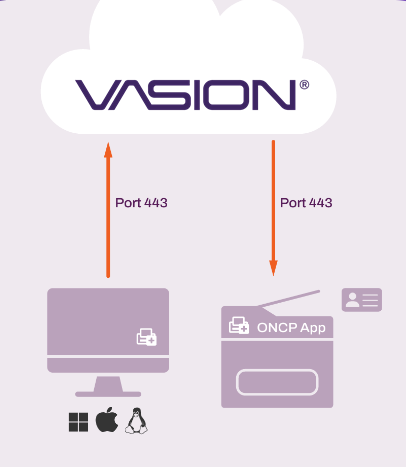

Both features use two main components: an external gateway and an Internal Routing Service, with the ONCP app acting as the IRS. The external gateway receives incoming print jobs from remote devices and acts as the entry point to the secure printer network. The IRS monitors the external gateway, downloads print jobs into the secure network, and delivers each job to the destination printer.

ONCP

ONP

Compare ONCP and ONP

Use the following comparison to choose the model that fits your environment:

Comparison Chart

Capability	ONCP	ONP
Supported Platforms	Windows, macOS, and mobile devices (iOS and Android).	Windows, macOS, Linux, ChromeOS, and mobile devices (iOS and Android).
External Gateway Hosting	Vasion-hosted (AWS).	Vasion-hosted, customer-hosted, or hybrid.
Gateway Assignment	Automatic, based on the instance region.	Manual, at the root, folder, or printer-level.
Internal Routing	ONCP app installed on the printer, or an IRS Service Agent.	IRS Service Agents only.
Redundancy	IRS Service Agent redundancy.	Multiple external gateways and IRS Service Agents.
Off-Network Priority Options	Off-Network Only and Direct IP Primary.	Off-Network Only, Direct IP Primary, and Off-Network Primary.

Off-Network Priority

Off-Network Priority controls where the PrinterLogic Agent tries to send the job first, either directly to the printer or to the ONCP or ONP service.

Off-Network Only

The Agent sends the print job using only the ONCP or ONP service and does not try to send the job directly to the printer, which is direct IP printing.

Direct IP Primary

The Agent sends the print job directly to the printer, which is direct IP printing. If unsuccessful, the Agent sends the print job using the ONCP or ONP service.

Off-Network Primary

The Agent sends the print job using the ONP service. If unsuccessful, the Agent sends the print job directly to the printer, which is direct IP printing.

Note the following:

• ONCP does not support the Off-Network Primary option.
• The Off-Network Priority options apply to only computers, not to mobile devices.

Requirements

Review the following requirements.

IRS Service Agents

For configurations using an IRS Service Agent:

For Windows Service Agents, ensure that Visual C++ Redistributable for Visual Studio 2015 or later is installed. You must install both the x86 and x64 redistributable packages. You can download these packages from the Windows Download Center.

• All devices, including Service Agents and printers, must access the Domain Name System (DNS) server to resolve names.
• For redundancy, you can add multiple Service Agents.
• Routing from the IRS to the printer occurs over TCP port 9100 or port 631 for IPPS.

For more details refer to Service Agent Setup.

ONP Requirements

Review the following requirements:

• Printers using ONP cannot have the SNMP Status option selected on the printer's Port tab. This option is different from SNMP Status Monitoring.
• ONP printing occurs over TCP port 443 from the device to the external gateway and from the external gateway to the IRS.
• Ensure that the following allow list URLs are open and adjusted for your region
  • U.S.: printercloud.com.
  • EMEA: printercloud5.com.
  • Azure: printercloud6.com.
  • APAC: printercloud10.com.
  • Canada: printercloud15.com.
  • Singapore: printercloud20.com.
  :

  • ofn.app.printercloud.com.
  • ofn-gw.app.printercloud.com.
• Customer-hosted gateways require a Secure Sockets Layer (SSL) certificate and key from a trusted Certificate Authority (CA).
  • The certificate must be a Base64 Privacy Enhanced Mail (PEM) full chain unencrypted file.
  • The key must be in unencrypted Public Key Cryptography Standards (PKCS) #8 format, and it must correspond to the PEM certificate.
  • The certificate must match the external Domain Name System (DNS) or IP address of the external gateway.

ONCP Requirements

Review the following requirements:

• For a list of supported devices, refer to Supported Printers for Printer Apps. Filter the results by selecting the Off-Network Cloud Printing option from the Feature dropdown menu.
• You need a Service Agent running the Printer Apps service. The ONCP app installs using the Printer Apps service. You can turn off or delete the Service Agent after installing the app if it is not part of another configuration.
• Ensure that the following allow list URLs are open and adjusted for your region
  • U.S.: printercloud.com.
  • EMEA: printercloud5.com.
  • Azure: printercloud6.com.
  • APAC: printercloud10.com.
  • Canada: printercloud15.com.
  • Singapore: printercloud20.com.
  :

  • Oncp-ofn.app.printercloud.com.
  • Oncp-pgw.app.printercloud.com.
• A Kyocera MFP must have an SD card to install third-party apps, like the ONCP app. If the device does not have an SD card by default, then you must install one.
• The HP ONCP app requires you to turn on the Workpath platform on the printer.
• Contact your HP representative or your HP-certified reseller to add the Vasion HP ONCP app from the HP Command Center. The representative needs to do the following:
  • Claim and add printers to the HP Command Center.
  • Add the Vasion ONCP app as a solution.
  • Add the app to the customer's account.
  • Manage and deploy the ONCP app to the printers.

Manufacturer Support

The following manufacturers support ONCP. Manufacturers supporting the ONCP app also work with an IRS Service Agent.

Next Steps

• Off-Network Cloud Print (ONCP).
• Off-Network Print (ONP): Vasion-Hosted Gateway.
• Off-Network Print (ONP): Customer-Hosted Gateway.
• Asymmetric Key Pair Configuration.
