PrinterLogic Output Console
Last Updated: June 24, 2026
The Output Console provides admins with a central location to monitor PrinterLogic Output activity and can see near real-time print job traffic through Output services within the console, as well as the status of the physical printers themselves, providing critical insights when troubleshooting issues.
Key Points
- Monitor the PrinterLogic Output environment.
- View printers.
- View the status of current and processed jobs.
- Recover from printing issues.
- Reprint, redirect, pause, release, or cancel print jobs.
- Use Custom Print Job Fields to add additional columns in the Print Jobs tab.
- Use Custom Printer Fields to add additional columns on the Printers tab.
- Review the Output Service Recommendations for managing updates to the Output service on the Service Agent.
Access the Output Console
The Output Console is only available to PrinterLogic customers with PrinterLogic Output enabled and have migrated to the unified login experience, as it requires additional functions only available with Vasion Automate. For more details refer to Unified Login Experience.
Learn more about PrinterLogic Output. Reach out to your Vasion representative for details and licensing.
Console Tab Details

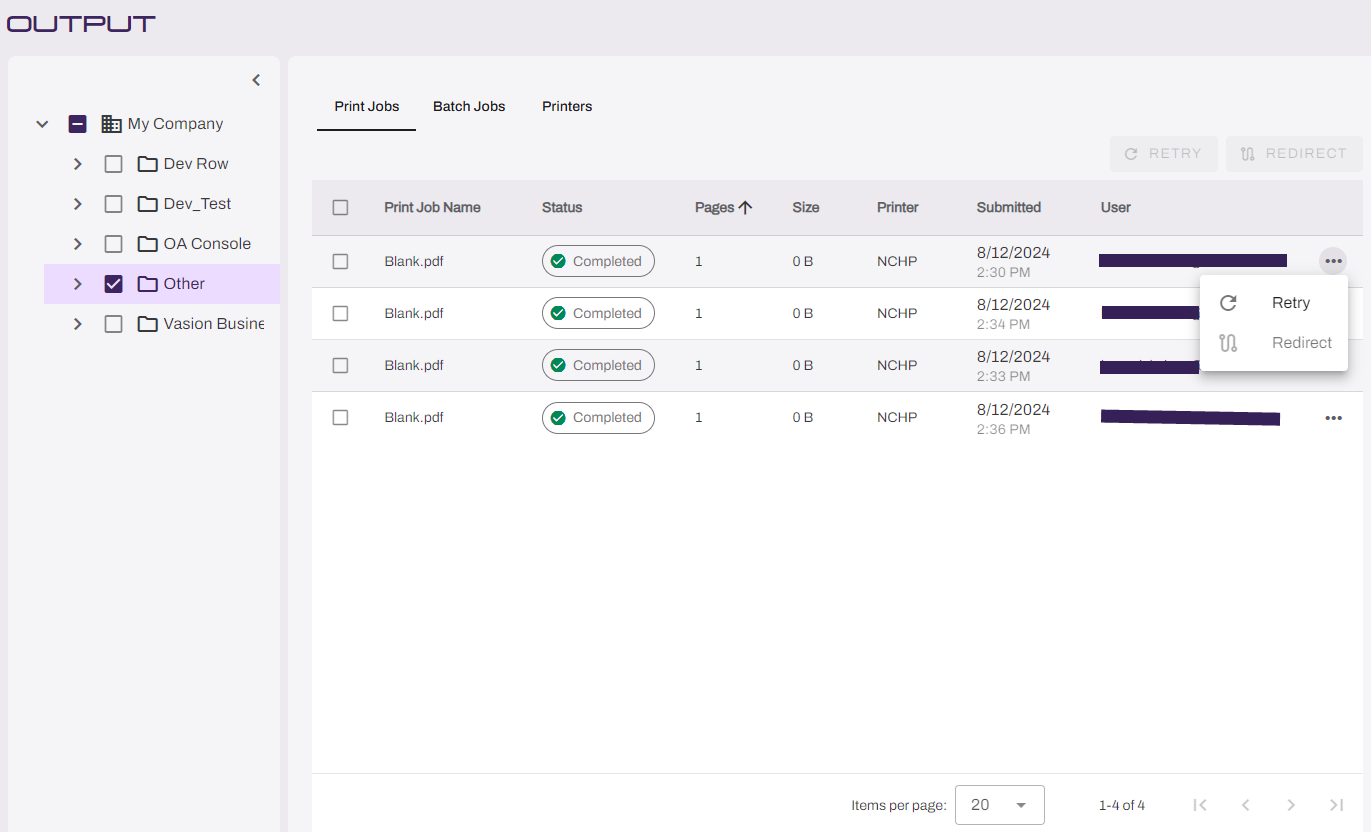

The Print Jobs tab shows information about jobs processed by PrinterLogic Output. In the left-side tree structure, you can filter print jobs by selecting specific folder(s) or printer object(s). Not selecting a folder or object in the tree structure displays all print jobs.
- Print Job Name: The name of the file sent through PrinterLogic Output.
- If you turned off the Include print job title in reports tree structure setting on Tools
Settings Printing in the Admin Console, this field shows Omitted instead.
- If you turned off the Include print job title in reports tree structure setting on Tools
- Status: The current status of the job.
- Pages: Page count of the sent job.
- Size: Size of the file sent in bytes / megabytes.
- Printer: The destination printer for the print job.
- Submitted: Date and time the file was sent.
- User: The user who sent the print job.
Add additional columns to the Print Jobs tab using Custom Print Job Fields.

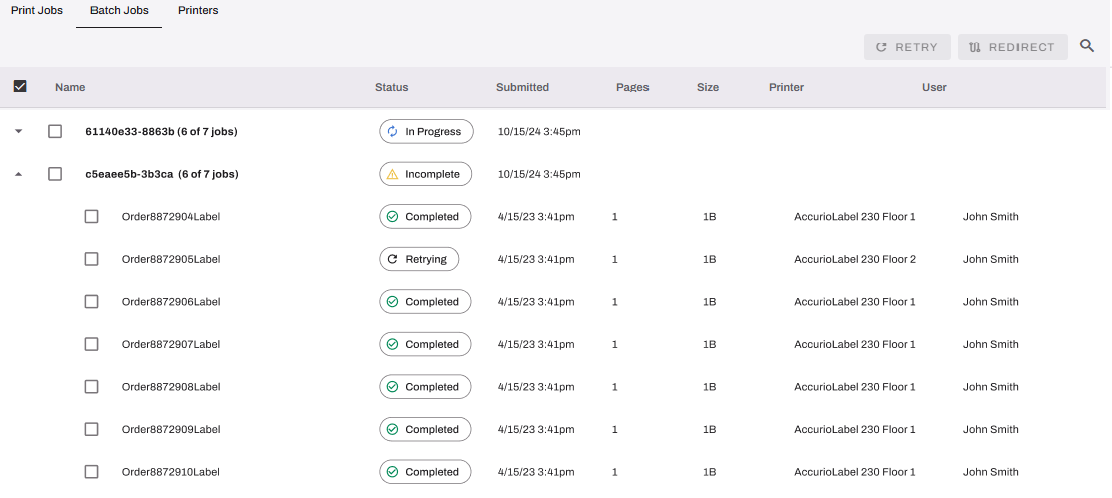

The Batch Jobs tab lets you quickly view and manage batch jobs in your environment.
The tab includes:
- Name: Batch ID of the job.
- Status: The current status of the job.
- Submitted: Date and timestamp the file was sent.
- Pages: Page count of the sent job.
- Size: Size of the file sent in bytes / megabytes.
- Printer: The destination printer for the print job.
- User: The user who sent the print job.
Add additional columns to the Batch Jobs tab using Custom Print Job Fields.

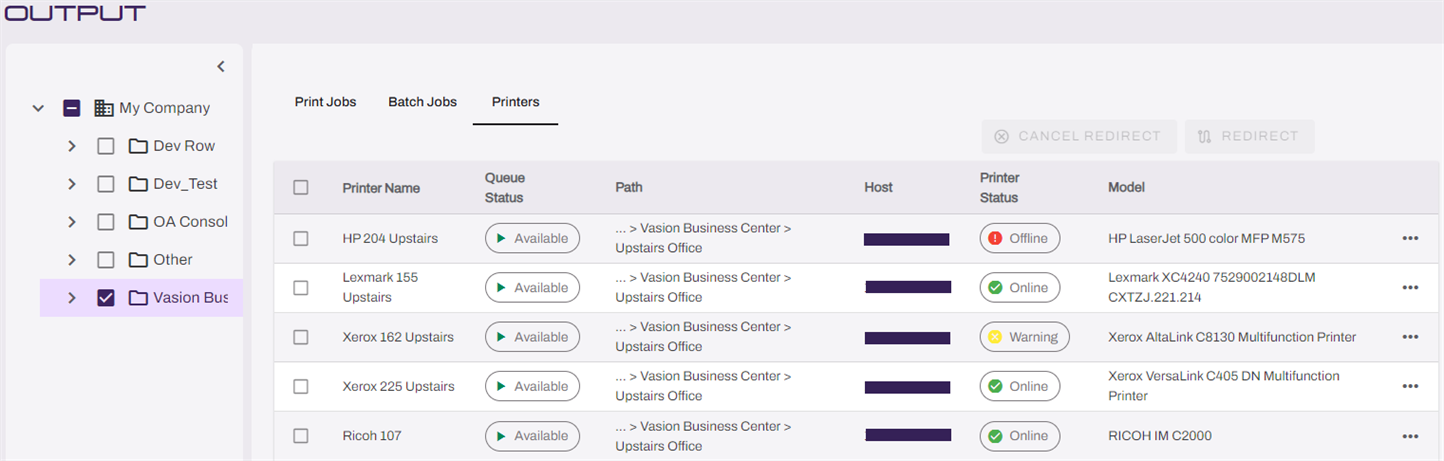

The Printers tab lets you quickly view and manage printers in your environment. In the left-side tree structure, you can filter printers by selecting specific folder(s) or printer object(s). Not selecting a folder or object in the tree structure displays all printers. The information showing on the Printers tab includes:
- Printer Name: The name of the printer as it appears in the Admin Console.
- Queue Status: The current queue status of the printer.
- Path: Path to the printer in the tree structure.
- Host: IP address or Hostname of the printer.
- Printer Status: The current status of the printer. Display options are Online, Warning, Offline, and Unknown.
- Model: Device model information reported via Simple Network Management Protocol (SNMP).
Add additional columns to the Printers tab using Custom Printer Fields.

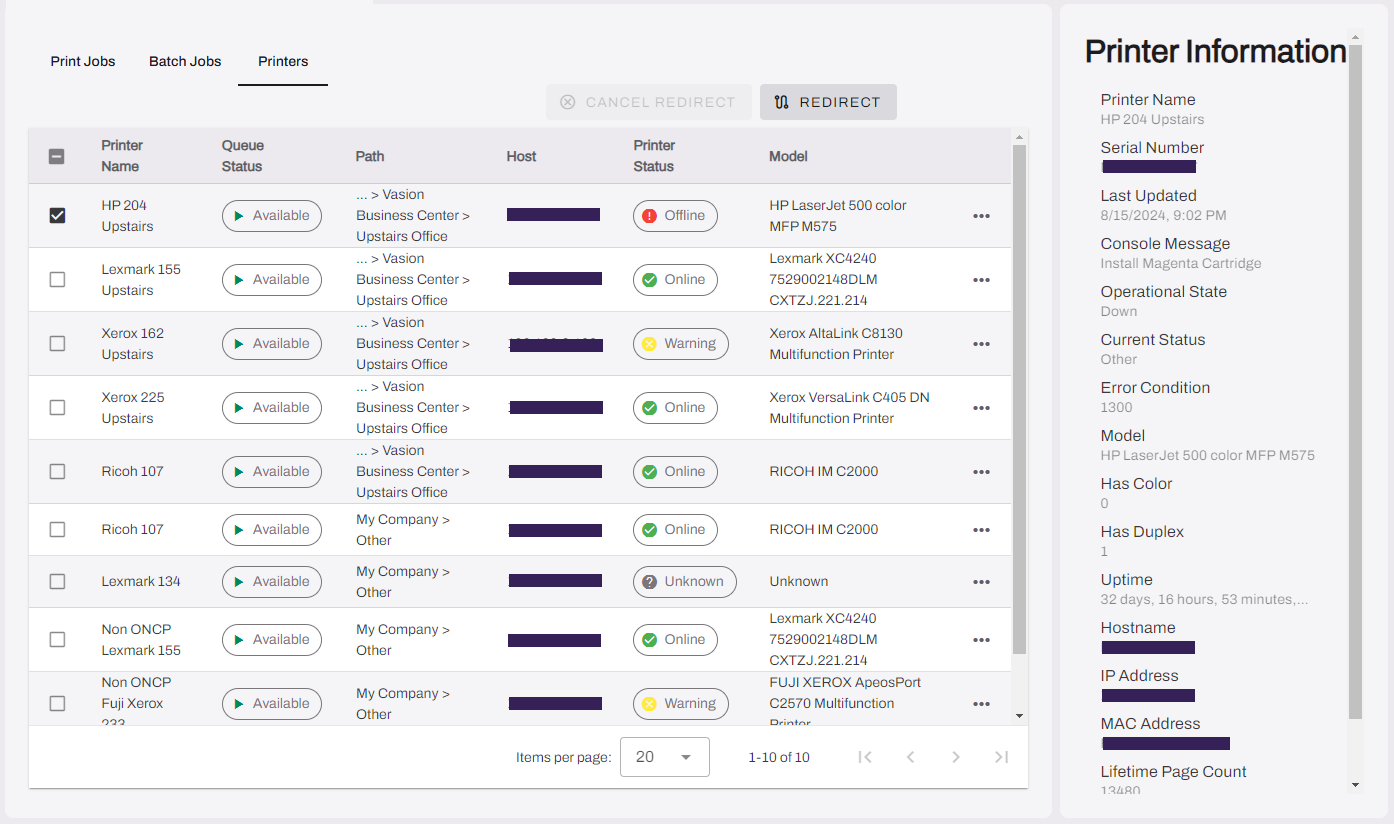

Printer Information
Select a printer from the list to view additional SNMP information and error messages. You can select only one printer at a time.
The panel shows:
- Printer Name.
- Serial Number.
- Last Updated.
- Console Message.
- Operational State.
- Current Status.
- Error Condition.
- Model.
- Has Color.
- Has Duplex.
- Uptime.
- Hostname.
- IP Address.
- MAC Address.
- Lifetime Page Count.
- SNMP Protocol Version.
Filters
The Output Console has multiple filter and sorting options, described in this section. Each tab, Print Jobs, Batch Jobs, and Printers, supports the same tree structure and column sorting capabilities. The Batch Jobs tab does not support Status filters, and the Status filter options on the Print Jobs and Printers tabs differ slightly.

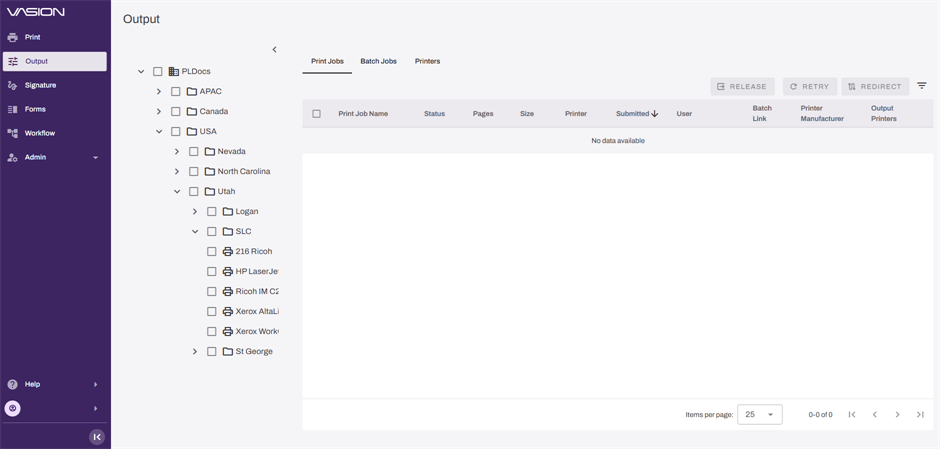

Tree Structure
The left-side panel includes a mirror of your tree structure. Selecting a folder shows all printers and print jobs for the printers in the folder and subfolders. Selecting a printer object shows the print jobs for that printer.
Column Headers
The columns in each tab are sortable in ascending and descending order. This includes Custom Print Job Fields. Select the column title to adjust the order. The sorted column displays an up or down arrow to signify ascending or descending.
Additionally you can reorder columns by left-clicking on the column and dragging it to the desired position.

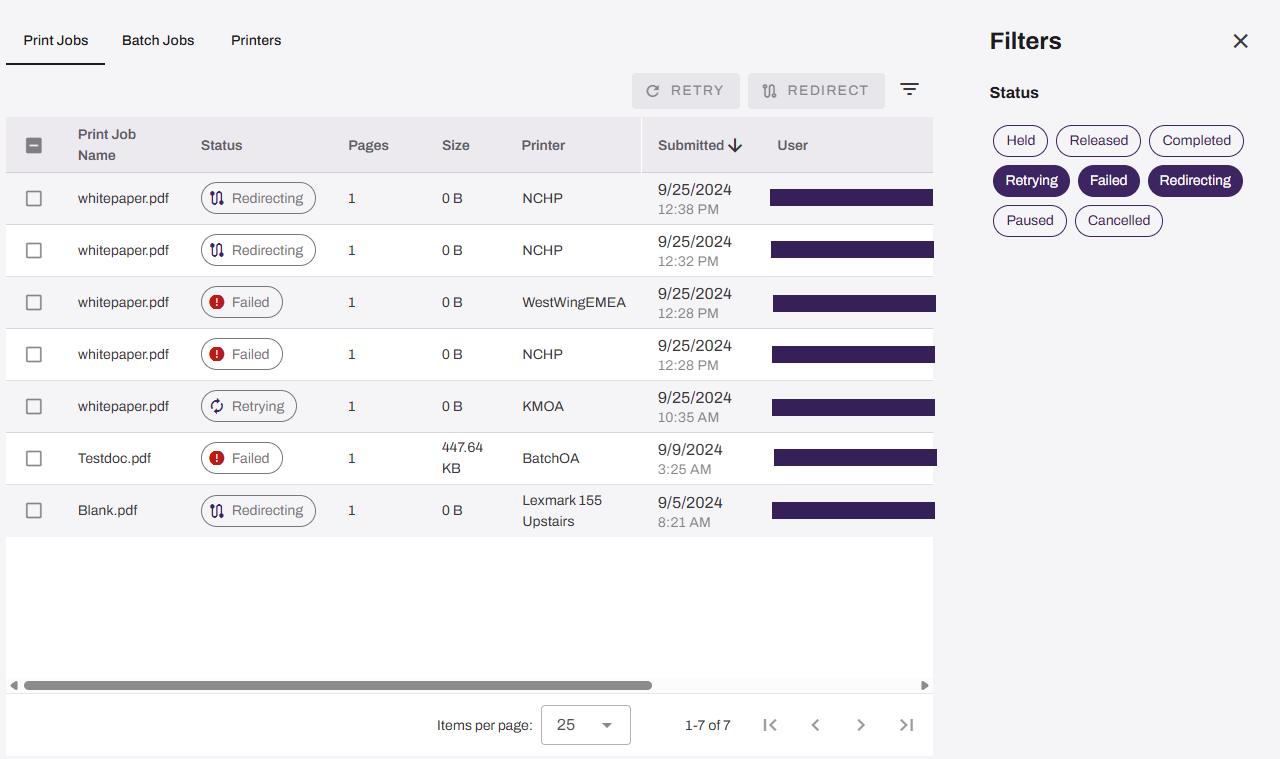

Status Filters
Selecting the filter icon
to the far right opens a new sidebar with Status options. The Print Jobs tab filters by the print jobs status. The Printers tab filters by queue and printer status.
Search
The Search bar in the console supports different search queries depending on the selected tab.
- Printerstab: Print Job Name, Printer Name, User, or Custom Print Job Fields.
- Batch Jobs tab: Batch UUID.
- Printers tab: Model (SNMP), Printer Name or Host.
