Configure CAC & PIV

Last Updated: April 07, 2026

Common Access Cards (CAC) and Personal Identity Verification (PIV) cards control access to secure information systems. Government agencies, medical facilities, and others commonly use these cards to restrict access to sensitive information. The Virtual Appliance supports authenticating to the Admin Console with these cards.

How It Works

After configuring CAC / PIV, the Admin Console displays an additional login option. When the user selects the CAC / PIV Login button, the browser prompts the user to choose a certificate. With the smart card certificate selected, a prompt for the user's PIN appears. A successful Transport Layer Security (TLS) challenge / response handshake submits the certificate to Virtual Appliance. The Virtual Appliance validates the certificate chain against the Certificate Authority (CA) bundle uploaded to the instance. It then performs an identity provider query to match the certificate against the Active Directory (AD) user account.

Successful login occurs when the certificate matches a single AD user, or if the certificate matches multiple AD users, the username provided at login validates them.

Requirements

Review the following requirements:

Environment

A smart card reader is attached to the workstation, and appropriate drivers are installed.
A CAC / PIV smart card is available, and appropriate drivers are installed.
All CAC / PIV root CAs are installed in the workstation's Trusted Root Certification Authorities store.
All CAC / PIV issuing CAs are installed in the workstation's Intermediate Certification Authorities store.
The user can authenticate to Windows by inserting the CAC / PIV card into the reader and entering their required credentials.

Virtual Appliance

An SSL certificate must be installed on the Virtual Appliance, and the root CA and any intermediate CAs must be trusted by all Windows workstations (it is not required to be a publicly trusted certificate).
Configure an LDAP Domain using a bind username / password on Tools Settings General.
Have a Vasion representative enable using CAC / PIV for your Virtual Appliance instance.

1. Configure DNS

If you configured the Virtual Appliance Allow List URLS using a wildcard CNAME entry, continue to the next step. If you used individual CNAME entries for the services, add an entry for the CAC / PIV service.

Copy Code

pivcac.fqdn.of.va    CNAME    fqdn.of.va

2. Prepare CAC / PIV CA Bundle

Create a PEM certificate bundle containing all root and issuing CAs so the Virtual Appliance can validate the CAC / PIV certificate chain.

Option 1

If the agency has a PKCS7 bundle (.p7b) file containing all CA certificates:

Use the following command to convert the PKCS7 bundle to PEM format.
Copy Code
```
openssl pkcs7 -print_certs -in dod_certs.p7b -out pivcac.crt
```
Open the resulting pivcac.crt file in your preferred editor.
Remove the Subjects and Issuers from before each certificate.

Only the concatenated list of certificates in PEM format, including the Begin headers and End footers should remain.
Save the file.

Option 2

If the agency does not have a PKCS7 bundle containing all the CA certificates:

Manually export each root and intermediate CA in X.509 base-64 encoded PEM format.
Create a single file containing the concatenated contents, and include the Begin headers and End footers for each.
Save the file.

3. Upload the CAC / PIV Bundle

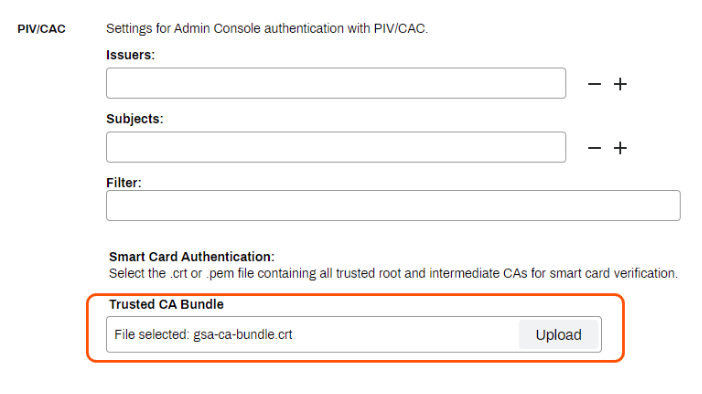

In the PIV/CAC section, you'll see fields for Issuers, Subjects, and Filter. These fields are from the legacy setup and are not required when configuring CAC / PIV for the Virtual Appliance.

Navigate to the PIV/CAC section on Tools Settings General in the Admin Console.
Use the Trusted CA Bundle field to locate the pivcac.crt bundle.
Select Upload.
Select Save in the upper-right corner.
Reboot the Virtual Appliance for the changes to take effect.

Verify the success of the upload by navigating to the shared storage's PI/storage/cert folder. The upload process renames the bundle to pivcac.crt, but the contents remain the same.

Troubleshooting Help

PIV/CAC Login says "Unable to process Login".

Open developer tools in the browser and select the Network tab.
Select the CAC / PIV Login button.
Watch for red entries, and investigate.
If the page says "Unable to process CAC Login" look for an error on acquire.php. If you hover over that entry, it should tell you what happened.
1. An ERR_NAME_NOT_RESOLVED means that the workstation could not resolve the pivcac CNAME entry.

Virtual Appliance Troubleshooting

../../_Resources/Troubleshooting.htm#microcontent34

Trouble authenticating the user upon login.

Federal agencies often have to cycle their service account passwords. Ensure that the service account password is correct by:

Navigate to the Identity Provider Settings section on ToolsSettingsGeneral.
Select the domain, then select Modify.
Select the Test Settings button.

If the Connection with Bind User/Password test fails, the bind username and password require updating.

Virtual Appliance Troubleshooting

../../_Resources/Troubleshooting.htm#microcontent32

Are you getting certificate errors upon login?

Verify CAC / PIV Certificate.

Examine the certificate being used to authenticate to the Admin Console.
Verify that the certificate has not expired.
Verify that the certificate is trusted and that all Certificate Authority (CA) in the chain are installed in the respective trusted CA stores for the Local Machine
Verify the way the certificates are mapped to users inside of Active Directory (AD).
- Are CAC / PIV certificates mapped to multiple AD user accounts through Name Mappings in AD Users and Computers?
- Do the CAC / PIV certificates have a PrincipalName entry inside the subjectAlternativeName extension?
- Does this PrincipalName match the userPrincipalName for the user inside of AD?

Virtual Appliance Troubleshooting

../../_Resources/Troubleshooting.htm#microcontent33
