Off-Network Printing

Last Updated: October 21, 2026

The Off-Network Cloud Print (ONCP) and Off-Network Print (ONP) features solve two printing challenges:

• Managing print in a Zero Trust Architecture (ZTA).
• Providing simple and secure access to users without a virtual private network (VPN) or web portal.

Organizations can create an isolated, secure printer network that is separate from the main network used by employees, contractors, or guests. This separation adds an extra layer of security and keeps the printers in a controlled network environment. ONCP and ONP bridge the gap between networks, allowing users on the main network to print without compromising the security of the printer network.

Key Points

Review the following key points:

• Requires additional licensing. Contact your Vasion representative for details.
• Uses RAW printing on the Windows platform.
  • Line Printer Remote (LPR) is not currently supported.

ONCP

• Supports Windows, macOS, and mobile devices (iOS and Android).
• Provides two internal routing options:
  • Installing the ONCP app on the printer.
  • Using an Internal Routing Service (IRS) Service Agent for manufacturers that do not support the app.

ONP

• Supports Windows, macOS, Linux, ChromeOS, and mobile devices (iOS and Android).
  • ONP uses RAW printing on macOS platforms.
• Supports customer-hosted and hybrid gateway configurations for additional redundancy.
• You can use your own asymmetric key pair for additional print-job encryption. For more details refer to Asymmetric Key Pair Configuration.

How Off-Network Printing Works

Both features use two main components: an external gateway and an Internal Routing Service (IRS), with the ONCP app acting as the IRS. The external gateway receives incoming print jobs from remote devices and acts as the entry point to the secure printer network. The IRS monitors the external gateway, downloads print jobs into the secure network, and delivers each job to the destination printer.

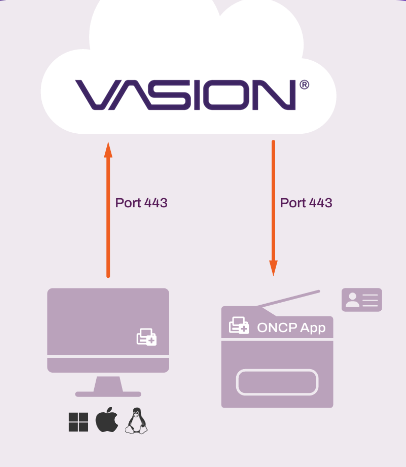

ONCP

IRS assignments do not affect ONCP. The location of the IRS Service Agent in the tree structure and any IRS assignments at the root, folder, or printer level do not determine which IRS handles a print job. Any IRS that can reach the printer can claim the job.

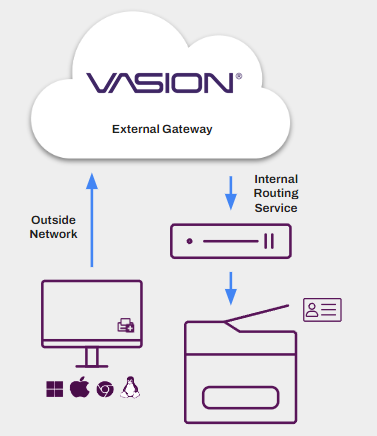

ONP

Compare ONCP and ONP

Use the following comparison to choose the model that fits your environment:

Comparison Chart

Capability	ONCP	ONP
Supported Platforms	Windows, macOS, and mobile devices (iOS and Android).	Windows, macOS, Linux, ChromeOS, and mobile devices (iOS and Android).
External Gateway Hosting	Vasion-hosted (AWS).	Vasion-hosted, customer-hosted, or hybrid.
Gateway Assignment	Automatic, based on the instance region.	Manual, at the root, folder, or printer-level.
Internal Routing	ONCP app installed on the printer, or an IRS Service Agent.	IRS Service Agents only.
Redundancy	IRS Service Agent redundancy.	Multiple external gateways and IRS Service Agents.
Off-Network Priority Options	Off-Network Only and Direct IP Primary.	Off-Network Only, Direct IP Primary, and Off-Network Primary.

Off-Network Priority

Off-Network Priority controls where the Virtual Appliance Agent tries to send the job first, either directly to the printer or to the ONCP or ONP service.

Off-Network Only

The Agent sends the print job using only the ONCP or ONP service and does not try to send the job directly to the printer, which is direct IP printing.

Direct IP Primary

The Agent sends the print job directly to the printer, which is direct IP printing. If unsuccessful, the Agent sends the print job using the ONCP or ONP service.

Off-Network Primary

The Agent sends the print job using the ONP service. If unsuccessful, the Agent sends the print job directly to the printer, which is direct IP printing.

Note the following:

• The Off-Network Priority options apply only to computers, not to mobile devices.
• ONCP does not support the Off-Network Primary option.

Requirements

Review the following requirements.

IRS Service Agents

For configurations using an IRS Service Agent:

• All devices must access the Domain Name System (DNS) server to resolve names.
• For redundancy, you can add multiple Service Agents.
• Routing from the IRS to the printer occurs over Transmission Control Protocol (TCP) port 9100 or port 631 for Internet Printing Protocol Secure (IPPS).

For Windows Service Agents, install the Visual C++ Redistributable for Visual Studio 2015-2022 package or later. You must install both the x86 and x64 redistributable packages. You can download these packages from the Windows Download Center.

For more details refer to Service Agent Setup.

ONP Requirements

Review the following requirements:

• Printers using ONP cannot have the SNMP Status option selected on the printer's Port tab. This option is different from Simple Network Management Protocol (SNMP) monitoring.
• ONP printing occurs over TCP port 443 from the device to the external gateway and from the external gateway to the IRS.
• Ensure that the following allow list URLs are open:

  • ofn.<instance FQDN>.
  • ofn-gw.<instance FQDN>.
• Customer-hosted gateways require a Secure Sockets Layer (SSL) certificate and key from a trusted Certificate Authority (CA).
  • The certificate must be an unencrypted Base64 Privacy Enhanced Mail (PEM) file that contains the full certificate chain.
  • The key must be in unencrypted Public-Key Cryptography Standards (PKCS) #8 format, and it must correspond to the PEM certificate.
  • The certificate must match the external Domain Name System (DNS) or IP address of the external gateway.

ONCP Requirements

Review the following requirements:

• For a list of supported devices, refer to Supported Printers for Printer Apps. Filter the results by selecting the Off-Network Cloud Printing option from the Feature dropdown menu.
• You need a Service Agent running the Printer Apps service. The ONCP app installs using the Printer Apps service. You can turn off or delete the Service Agent after installing the app.
• Ensure that the following allow list URLs are open:

  • oncp-ofn.<instance URL>.
  • oncp-pgw.<instance URL>.
• The Vasion ONCP app for HP requires you to turn on the HP Workpath platform on the printer.
• Contact your HP representative or your HP-certified reseller to add the Vasion ONCP app from the HP Command Center. The representative needs to do the following:
  • Claim and add printers to the HP Command Center.
  • Add the Vasion ONCP app as a solution.
  • Add the app to your account.
  • Manage and deploy the ONCP app to the printers.

Manufacturer Support

Manufacturers that support the ONCP app also work with an IRS Service Agent. The following manufacturers support ONCP:

Next Steps

• Off-Network Cloud Print (ONCP).
  • Off-Network Cloud Print Coach (Checklist Style).
• Off-Network Print (ONP): Vasion-Hosted Gateway.
• Off-Network Print (ONP): Customer-Hosted Gateway.
  • Off-Network Print Coach (Checklist Style)
• Asymmetric Key Pair Configuration.
